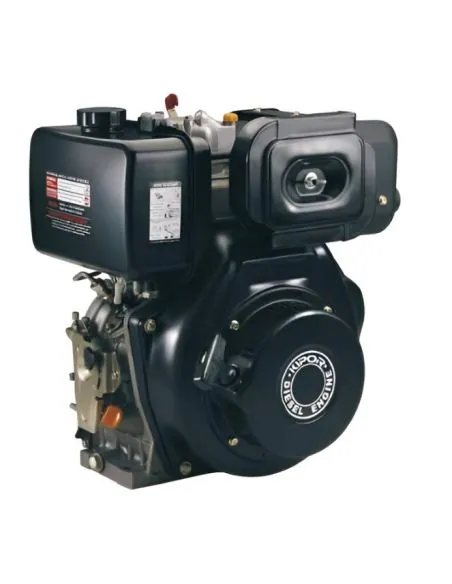

KIPOR KM186FGY5 Diesel Engine - Single Cylinder - 9.1 hp - 406 cc

KIPOR KM186FGY5 Diesel engine: single-cylinder Euro V with direct injection and conical crankshaft. Equipped with oil bath filter and manual starter. Ideal for motorized hoes and power tillers.

Features :

• Engine: Euro V
• Engine type: 1 cylinder, 4 stroke, air cooled, direct injection
• Fuel Type: Diesel
• Starting system: Manual
• Crankshaft: Tapered
• Displacement: 406 cc
• Maximum power: 8.6 HP | 6.3 kW
• Rated power: 7.8 HP | 5.7 kW
• Engine speed (rpm): 3600 / 1800 rpm
• Fuel tank capacity: 5.5 liters
• PTO Shaft: PTO RPM ½
• Consumption: 281.5 / 3600 g/Kw-h
• Direction of rotation: Left (from the axis)
• Shaft output diameter: Ø 23 mm
• Bore (*stroke): Ø 86 (*70 mm)
• Compression ratio: 19
• Lubricating oil capacity: 1.65 liters
• Lubricating oil: SAE 10W30
• Starting motor capacity: 12V-0.8 kW
• Generator load capacity: 12V/3A
• Battery capacity: 12V/36Ah
• Dimensions: 420 x 440 x 495 mm
