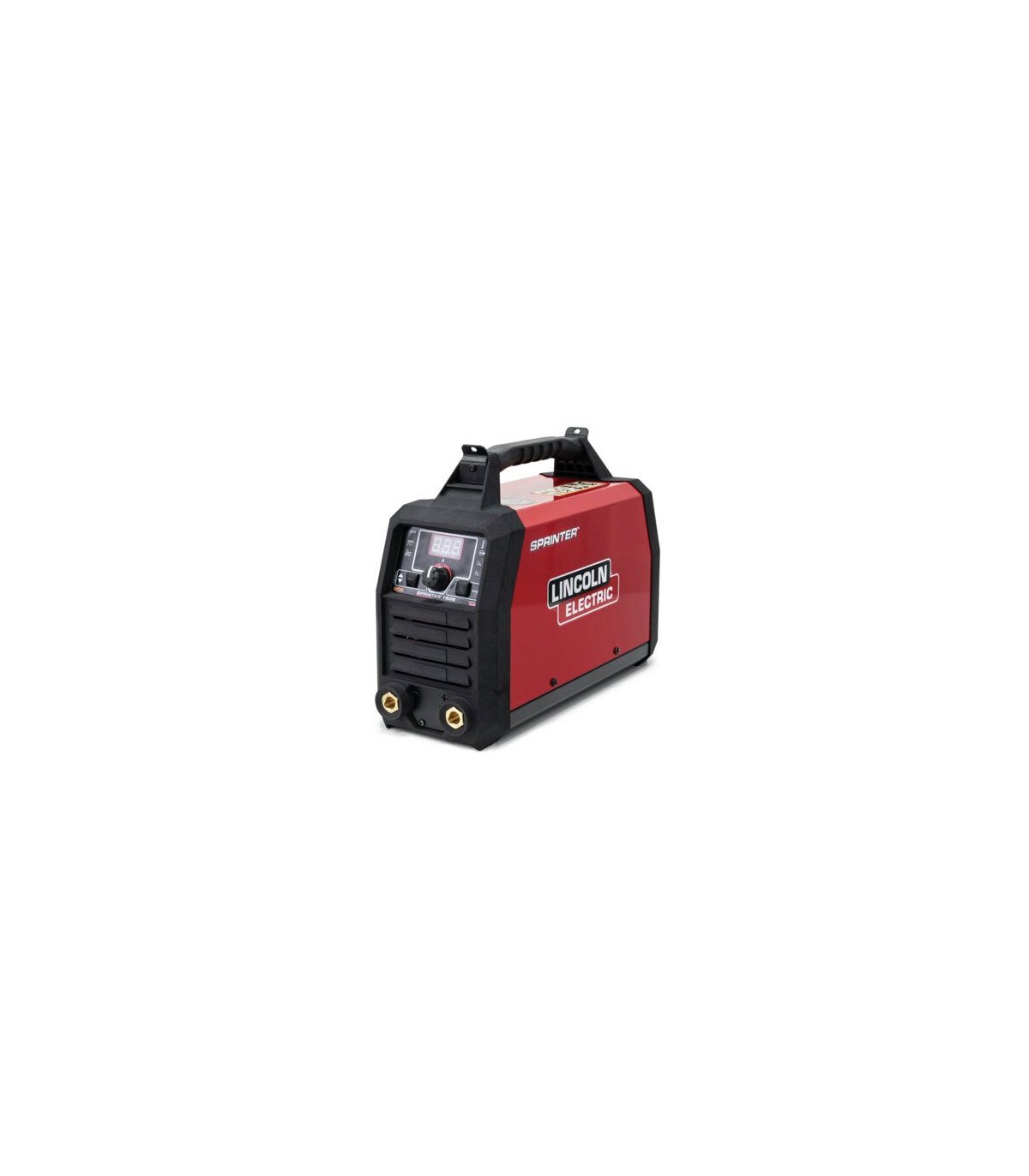

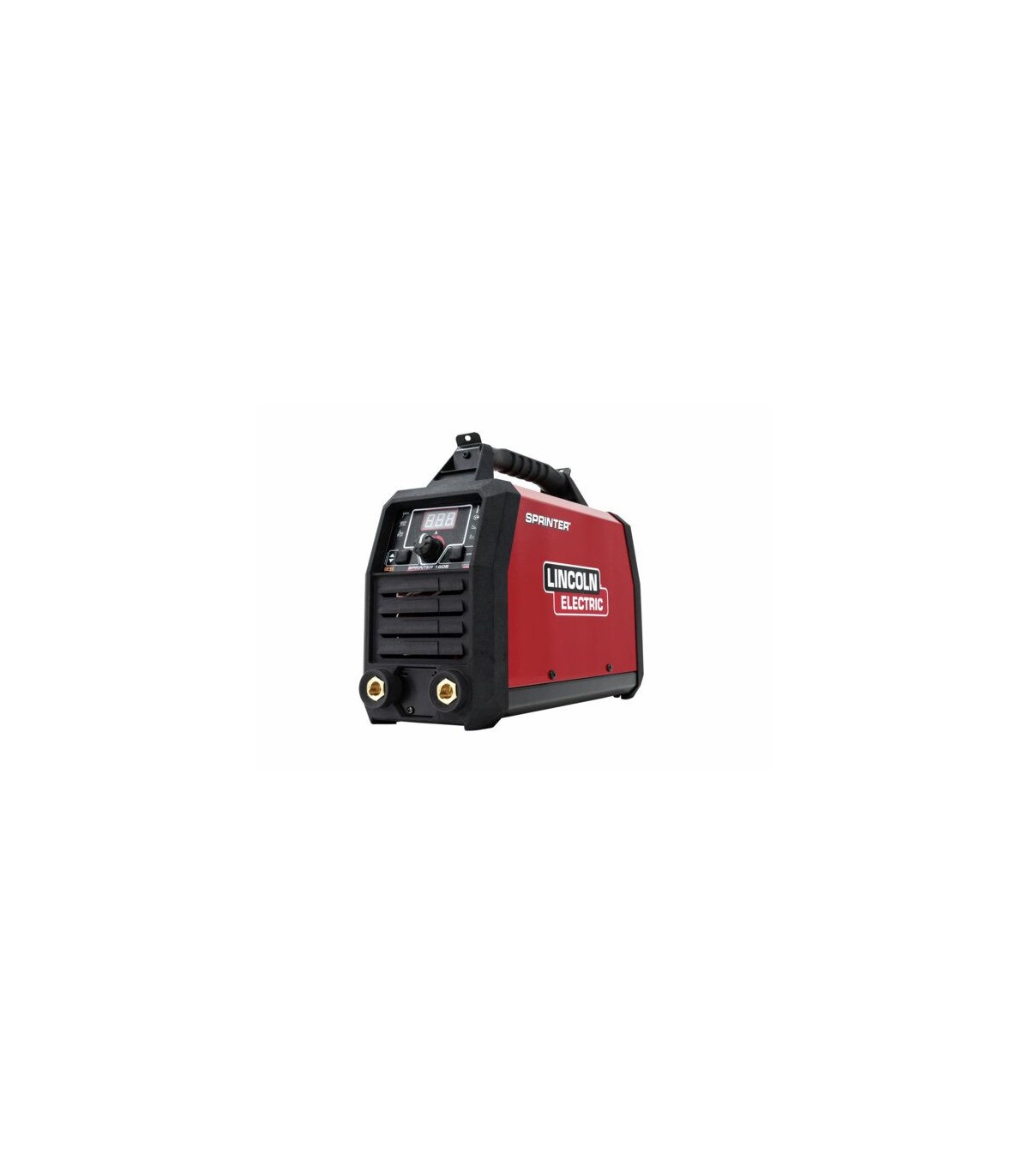

Lincoln Electric Sprinter 160S Welding Machine – 160A, Portable, 120/230V

The Lincoln Electric Sprinter 160S is a compact and robust welding inverter, developed for those who need power, mobility, and reliability on a daily basis. With dual input of 120V and 230V, it can be used practically anywhere, always ensuring stable performance, even with long extension cords thanks to PFC technology.

Main Features

• Dual Input 120V/230V – Compatible with common outlets, allowing work in any environment.

• Portable and lightweight – Weighing less than 9 kg, it is easy to transport with an ergonomic handle or included shoulder strap.

• Hot Start – Temporarily increases the current at startup for quick and safe arc ignition.

• Arc Force – Prevents the electrode from sticking and improves weld penetration.

• Multi-process – Welds stick electrode (DC) and allows TIG Lift DC.

• Dedicated modes – E6010 and E7018 for optimized performance with different types of electrodes.

• PFC – Tolerant to power fluctuations and ideal for use with cables up to 100 m.

Includes

• Lincoln Sprinter 160S welding source

• Shoulder strap

Applications

• Industrial maintenance

• Light metal construction

• On-site work

• Manufacturing and general repairs

Technical Specifications

• Process: SMAW (Stick welding)

• Open circuit voltage: 65V

• Input voltage: 120/230V ±10%

• Input current: 16A

• Frequency: 50/60 Hz

• Phase: Single-phase

• Input power: 120/230V 1Ph 50–60Hz (±15%)

• Current range: 20–160A

• Polarity: DC

• Dimensions (H x W x D): 305 × 162 × 438 mm

• Net weight: 8.4 kg
