copy of Lincoln Electric Sprinter 180S Welding Machine – 180A, Portable, 120/230V

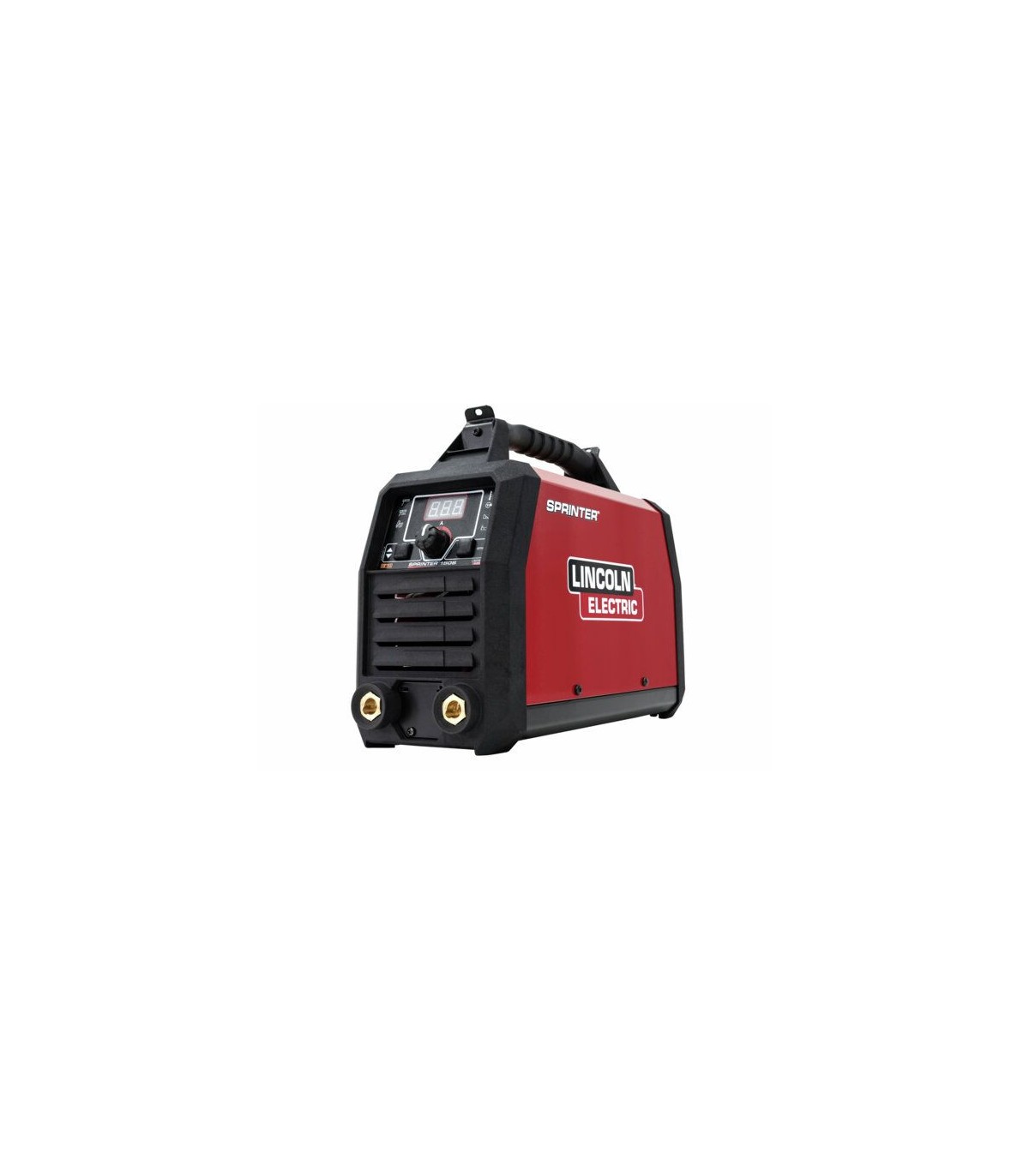

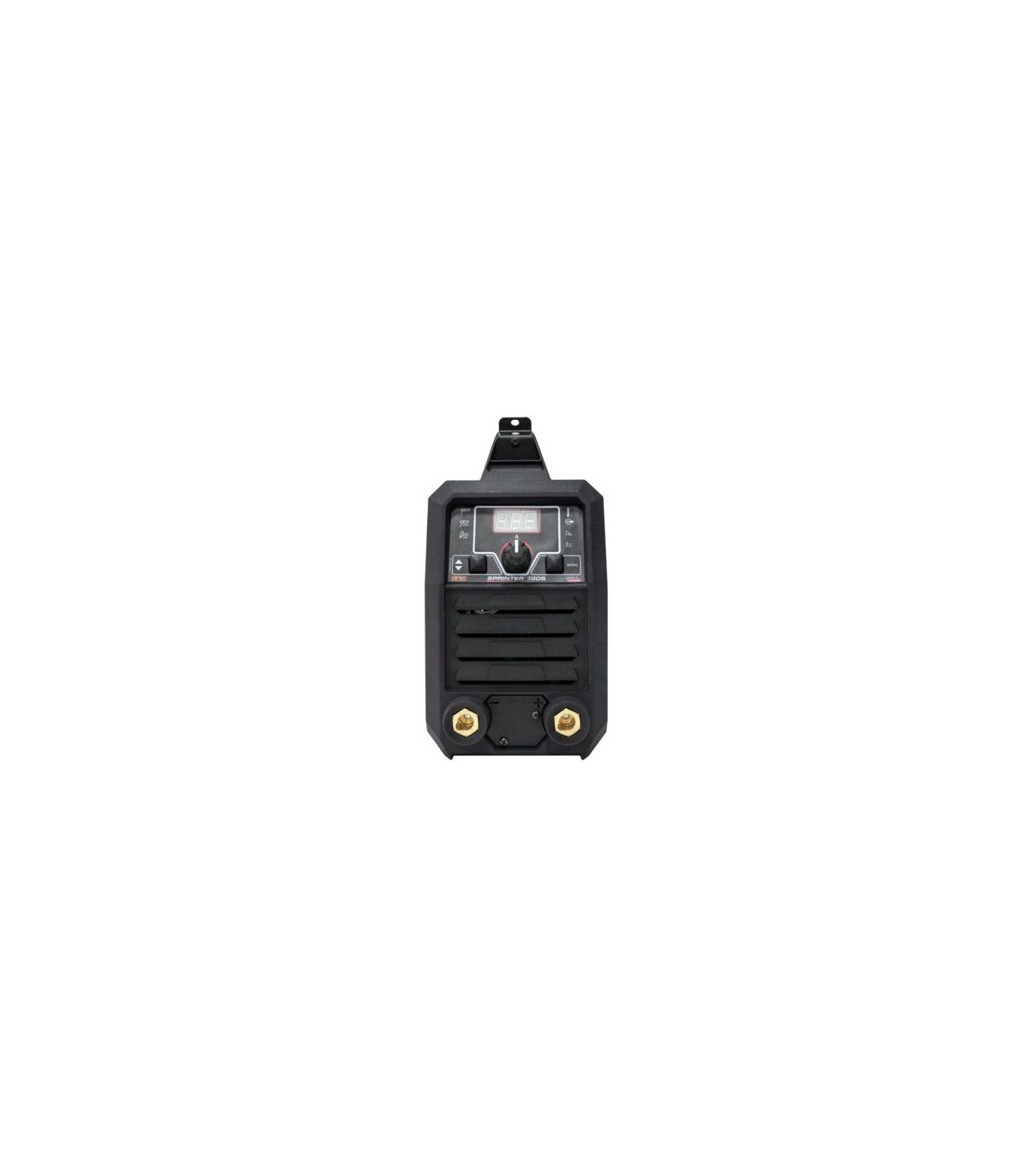

The Lincoln Electric Sprinter 180S is a robust and portable inverter welding machine, designed for those who need more power without losing mobility. With 180A output and dual 120V/230V input, it easily adapts to any work environment, ensuring a stable arc and excellent performance with a wide range of electrodes, including E6010 and E7018.

Main Features

• Dual Input 120V/230V – Compatible with different electrical installations, ideal for workshop or site work.

• Hot Start – Facilitates arc starting, especially useful with more difficult electrodes.

• Arc Force – Prevents the electrode from sticking and improves arc control.

• Multi-process – MMA (DC) welding and compatibility with TIG Lift DC (torch with valve, without HF).

• High Portability – Less than 9 kg, easy to transport thanks to the ergonomic handle or shoulder strap.

• Dedicated Modes – E6010 and E7018 for greater versatility and welding quality.

• PFC Technology – Stable performance even with power fluctuations or extension cables up to 100 m.

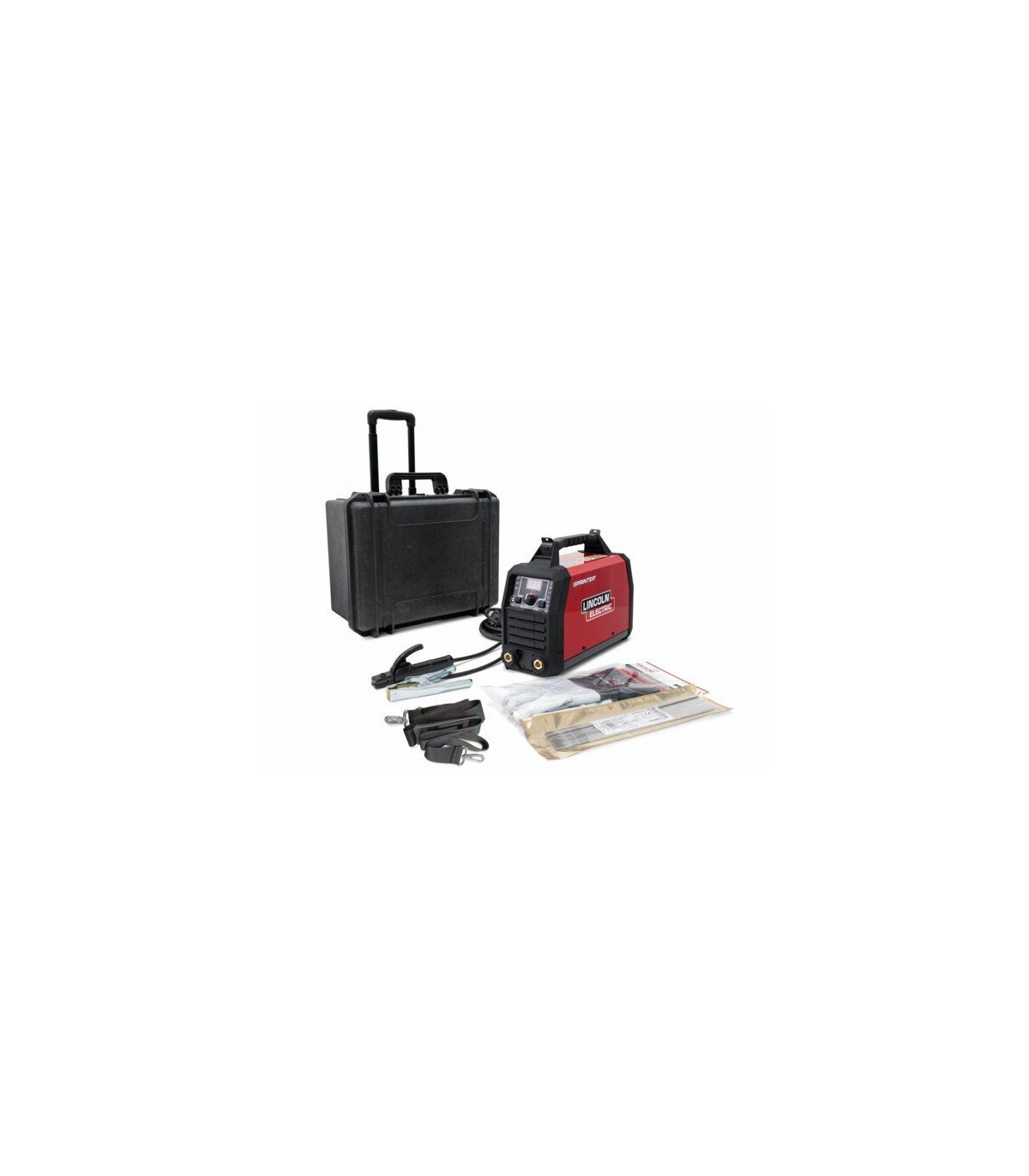

Includes

• Sprinter 180S welding source

• Shoulder strap

Applications

• Metal construction

• Industrial and automotive maintenance

• On-site repairs

• Light manufacturing and metalworking

Technical Specifications

• Process: SMAW (electrode) + TIG Lift DC

• Open Circuit Voltage: 65V

• Input Voltage: 120/230V ±10%

• Input Current: 16A

• Frequency: 50/60 Hz

• Phase: Single-phase (1Ph)

• Input Power: 120/230V 1Ph 50–60Hz (±15%)

• Current Range: 20–180A

• Polarity: DC

• Dimensions (H x W x D): 305 × 162 × 438 mm

• Weight: 8.4 kg
